100% Virgin Cemented Carbide Mining Buttons

Basic Information
Brand Name: PM
Minimum Order Quantity: 10
Delivery Time: 1-20 working days
Payment Terms: L/C, T/T
Supply Ability: 200t/month
Detail Information
Features: High Hardness Type: Power Tool Parts,Construction Tool Parts,Mining Drill Bits,Hand Tool Parts
Material: 100% Virgin Tungsten Carbide Application: Drilling,Rock Drills,Oil Cone Drill Bits,anti-corrosion,Suitable For Making Oil-field And Mining Drill Bits
Grade: G206,G506,G208,G308,G211,G215,G510,G512,G513,G707,G806 Product Name: Milling Bits,Mining Teeth,tungsten Carbide Piece,Drill Bit Inserts Cemented Tungsten Carbide Dome Buttons
Advantage: Wear Resistant,Wear ResistantSuperior,High Performance Color: Gray,black Alloy
Sample: Carbide Button Samples Available Keywords: Tungsten Carbide Button Tungsten Carbide Teeth Tungsten Carbide Tip,tungsten Carbide Spherical Button,tungsten Carbide Mining Teeth
Hardness: HRA89-HRA92.9,87 HRA,85-89.5 HRA Surface Treatment: Finish Grounded,Ground And Polished
Commodity Name: Power Tool Parts,Carbide Buttons,High Quality Tungsten Carbide Punch Balls Process: Sinter-HIPed,powder Prepraring-pressing-sintering-processing-finishing
Shape: Spherical,flattop,conical,Auger Tips,bolistic Density: 14.05-14.95 G/cm3,14.14 G/cm3,13.90-14.90
Feedback: Within 24 Hours
High Light:

Carbide Mining Buttons

,

100% Virgin Carbide Mining Buttons

,

Cemented Carbide Mining Buttons


Product Description

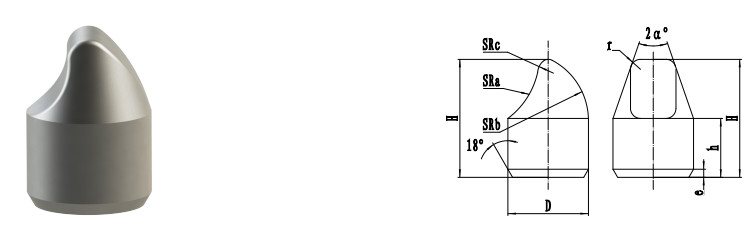

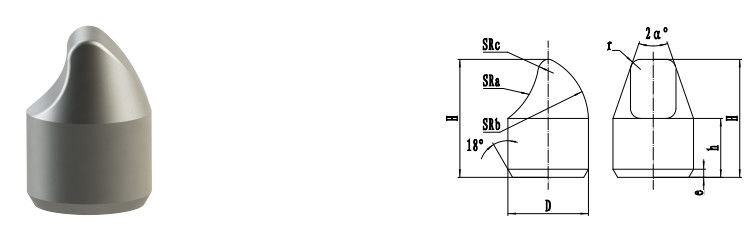

Cemented carbide for mining Spoon buttons



Grade Introduction of Mineral
Grade Co Grain Size of WC Hardness Density Flexural Strength Bending Tough- ness Elastic
Modulus
Coeffi-
cient of Thermal Expan- sion
Application
Co% HRA HV30 g/cm3 MPa N/mm2 GPa 10-6/°C
G206 6 Medium 90.8 1500 14.9 3200   530 4.9 Suitable for DTH drilling with high wind pressure
G506 6 Coarse 88.0 1200 14.9 2500   530 4.9 Suitable for gear shaper cutting of concrete and
asphalt road
G208 8 Medium 89.1 1300 14.7 2750   510 5.1 Suitable for DTH drilling with medium and low
wind pressure,and rock breaking
G308 8 Medium 88.8 1270 14.7 2750   510 5.1 Suitable for tri-cone drill bit in milling, and tri-cone
G211 11 Medium 88.0 1200 14.4 2800   478 5.6 tri-cone drill bit in milling,
drill bit in engineering
G215 15 Medium 86.8 1100 14 2800   430 6.3 Suitable for oilfield composite sheet
G510 10 Coarse 86.2 1040 14.5 2700   490 5.4 Suitable for rotary drilling cutter, and coal cutters
G512 12 Coarse 86.0 1030 14.3 2900   470 5.7 Suitable for tunnel boring machine of scraper,cut-
ter and wear plate
G513 13 Coarse 85.6 1000 14.2 2900   460 5.8 Suitable for tunnel boring machine of scraper,cut-
ter and wear plate
G707 7 Extra
Coarse
86.3 1050 14.8 2200   520 5 Suitable for hard rock in engineering, and DTH
drilling cutter
G806 6 Extra
Coarse
86.2 1040 14.9 2100   530 4.9 Suitable for high rock of rotary drilling cutter
