G707 G806 Grade Carbide Teeth Inserts Buttons For Water Well

Basic Information
Brand Name: PM
Minimum Order Quantity: 10
Delivery Time: 1-20 working days
Payment Terms: L/C, T/T
Supply Ability: 200t/month
Detail Information
Features: High Hardness Type: Power Tool Parts,Construction Tool Parts,Mining Drill Bits,Hand Tool Parts
Material: 100% Virgin Tungsten Carbide Application: Drilling,Rock Drills,Oil Cone Drill Bits,anti-corrosion,Suitable For Making Oil-field And Mining Drill Bits
Grade: G206,G506,G208,G308,G211,G215,G510,G512,G513,G707,G806 Product Name: Milling Bits,Mining Teeth,tungsten Carbide Piece,Drill Bit Inserts Cemented Tungsten Carbide Dome Buttons
Advantage: Wear Resistant,Wear ResistantSuperior,High Performance Color: Gray,black Alloy
Sample: Carbide Button Samples Available Keywords: Tungsten Carbide Button Tungsten Carbide Teeth Tungsten Carbide Tip,tungsten Carbide Spherical Button,tungsten Carbide Mining Teeth
Hardness: HRA89-HRA92.9,87 HRA,85-89.5 HRA Surface Treatment: Finish Grounded,Ground And Polished
Commodity Name: Power Tool Parts,Carbide Buttons,High Quality Tungsten Carbide Punch Balls Process: Sinter-HIPed,powder Prepraring-pressing-sintering-processing-finishing
Shape: Spherical,flattop,conical,Auger Tips,bolistic Density: 14.05-14.95 G/cm3,14.14 G/cm3,13.90-14.90
Feedback: Within 24 Hours
High Light:

G707 Carbide Teeth Inserts

,

G806 Carbide Teeth Inserts

,

carbide button inserts For Water Well


Product Description

Cemented carbide for coal-mining tools M20 type



Tungsten carbide button is widely used as the most popular mining bits tool in modern industries, therefore, they are also named tungsten carbide mining bits, tungsten carbide button bits or just tungsten carbide mining buttons, etc. And as their material is cemented carbide, so cemented carbide buttons are also widely used among the users.



As its unique working performance, tungsten carbide buttons are widely applied to oil filed drilling and snow removal, snow plough machines or equipments.



Grade Introduction of Mineral
Grade Co Grain Size of WC Hardness Density Flexural Strength Bending Tough- ness Elastic
Modulus
Coeffi-
cient of Thermal Expan- sion
Application
Co% HRA HV30 g/cm3 MPa N/mm2 GPa 10-6/°C
G206 6 Medium 90.8 1500 14.9 3200   530 4.9 Suitable for DTH drilling with high wind pressure
G506 6 Coarse 88.0 1200 14.9 2500   530 4.9 Suitable for gear shaper cutting of concrete and
asphalt road
G208 8 Medium 89.1 1300 14.7 2750   510 5.1 Suitable for DTH drilling with medium and low
wind pressure,and rock breaking
G308 8 Medium 88.8 1270 14.7 2750   510 5.1 Suitable for tri-cone drill bit in milling, and tri-cone
G211 11 Medium 88.0 1200 14.4 2800   478 5.6 tri-cone drill bit in milling,
drill bit in engineering
G215 15 Medium 86.8 1100 14 2800   430 6.3 Suitable for oilfield composite sheet
G510 10 Coarse 86.2 1040 14.5 2700   490 5.4 Suitable for rotary drilling cutter, and coal cutters
G512 12 Coarse 86.0 1030 14.3 2900   470 5.7 Suitable for tunnel boring machine of scraper,cut-
ter and wear plate
G513 13 Coarse 85.6 1000 14.2 2900   460 5.8 Suitable for tunnel boring machine of scraper,cut-
ter and wear plate
G707 7 Extra
Coarse
86.3 1050 14.8 2200   520 5 Suitable for hard rock in engineering, and DTH
drilling cutter
G806 6 Extra
Coarse
86.2 1040 14.9 2100   530 4.9 Suitable for high rock of rotary drilling cutter

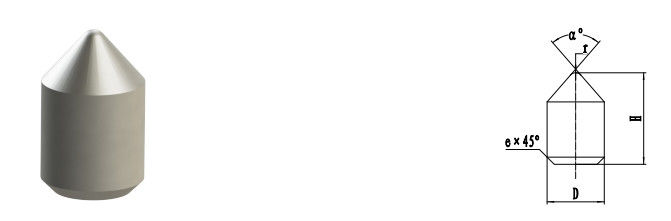

G707 G806 Grade Carbide Teeth Inserts Buttons For Water Well 0



Hunan Boyun Dongfang Powder Metallurgy Co., Ltd. was founded in 1994 by the Institute
of powder metallurgy of Central South University of Technology (now the research center
of powder metallurgy engineering of Central South University) and Hunan Yinzhou Co.,
Ltd. (now the wholly-owned member company of China Dongfang asset management
company, Bangxin Asset Management Co., Ltd.),now it is the holding subsidiary of
Hunan Boyun New Material Co., Ltd. (Stock Code: 002297), with a registered capital
of 60 million yuan.The company is a national high-tech enterprise with Academician
Huang Boyun, the top material scientist in China, as the chief scientist and honorary
chairman of the board, integrating domestic and foreign talents and technological
advantages, integrating production, learning, research and application, engaged in the
research, development, production and sales of high-performance cemented carbide.
The member of China Tungsten Industry Association, China mold industry association,
China machinery industry metal cutting tool technology association.

With strong support from Central South University, State Key Laboratory of
Powder Metallurgy, National Engineering Research Center of Powder Metallurgy,
Quality Supervision and Inspection Center of Powder Metallurgy Products of
Chinese Nonferrous Material Industry , the Company has played leading role in
three projects of “National High Technology Research and Development Program
(863 plan)”.
