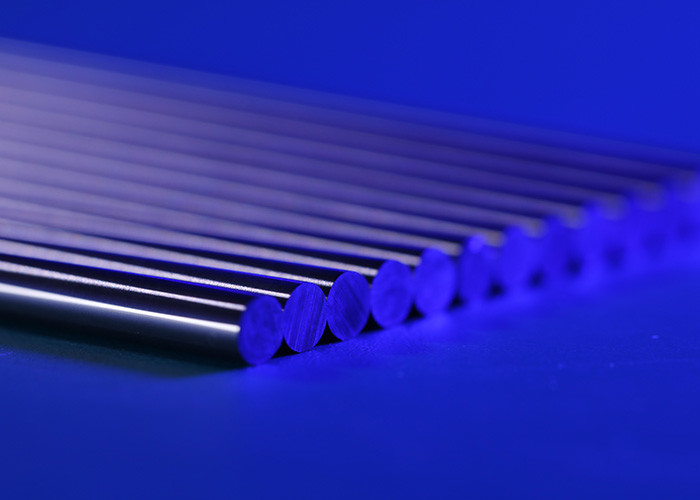

High Hardness Tungsten Carbide Blank Solid Rods ST10F ST10UF Grade

Basic Information
Brand Name: PM
Minimum Order Quantity: 10
Delivery Time: 1-14 work days
Payment Terms: T/T
Supply Ability: 1000000pcs/month
Detail Information
Diameter: 2-48mm Length: 40-330mm
Co%: 6-15% HRV: 91.0-94.5
Hardness HV30: 1520-2180 Density: 13.8-14.8g/cm³
Flexural Strength: 9-13MPa Fracture Toughness: 430-530GPa
Elastic Mod- Ulus: 4.9-6.3 MNm-3/2
High Light:

Tungsten Carbide Blank Solid Rods

,

Tungsten Carbide Blank ST10F

,

Carbide Blank Rods ST10UF


Product Description

Tungsten Carbide Blank Solid Rods for milling tools



Our rods have different grade and right to use on different application; Specially we are produce the Nano Grain carbide (Grain<0.2µm); Our rods are with high hardness and wear/corrosion resistance, all products with stable quality;

  • 100% raw material;
  • Hip sintered, high hardness, high wear resistance;

l Dimension: diameter from 2-48mm, length up to 330mm;

l with one coolant hole or helix holes rods and blind hole rod;

l Ground(tolerance with h6/h5/h4) and unground;


Grade Information

Grade Co% Grain Size of WC HRA Hardness
HV30
 Density Flexural Strength Fracture Toughness Elastic Mod- ulus Coefficient
of Thermal
Expansion
           g/cm³ MPa GPa MNm-3/2 10-6/℃
ST10F 6 Sub-Micron 92.9 1840 14.8 3500 10 530 4.9
ST10UF 6 Ultra-fine 93.8 2040 14.7 2900 9 530 4.9
ST10NF 6 Nano 94.5 2180 14.6 4000 9 530 4.9
ST10C 7 Fine 90.7 1480 14.7 3500 12 520 5.0
ST11F 8 Sub-Micron 92.3 1720 14.6 3800 10 510 5.1
ST11UF 8 Ultra-fine 93.5 1960 14.5 3200 9 510 5.1
ST12F 9 Ultra-fine 93.5 1960 14.4 4500 10 500 5.3
ST12NF 9 Nano 94.2 2100 14.3 4800 9 500 5.3
ST15D 9 Sub-Micron 91.2 1520 14.4 3500 13 500 5.3
ST15F 10 Sub-Micron 92.0 1670 14.3 3600 11 490 5.4
ST20F 10 Sub-Micron 91.7 1620 14.4 4300 11 490 5.4
ST20D 10 Sub-Micron 92.0 1670 14.3 4100 11 490 5.4
ST25F 12 Ultra-fine 92.4 1740 14.1 5100 10 470 5.7
ST25EF 12 Ultra-fine 92.2 1700 14.1 4800 10 470 5.7
ST25D 12 Ultra-fine 91.5 1570 14.2 3900 13 470 5.7
ST37NF 15 Nano 92.2 1700 13.8 4600 12 430 6.3
