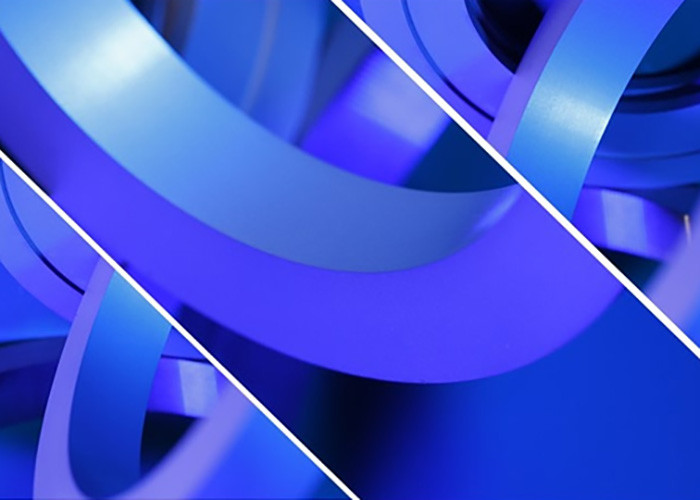

MD45A Grade Tungsten Carbide Rings D201*D155.5*25.5 For Sealing

Basic Information
Brand Name: PM
Minimum Order Quantity: 1
Delivery Time: 10-25 working days
Payment Terms: L/C, T/T
Detail Information
Product Material: Tungsten Carbide,100% Original Carbide Product: Vehicle Mould,mold Parts,Auto Stamping Parts
Grade: MD45A Application: For Upper And Lower Dies,Stamping And Cutting
Size: Any SIze Type: Any Type
Advantage: Electrochemical Corrosion Resistance;Hip Sintered, High Hardness, High Wear Resistance;Tunable Residual Stress; Surface Treatment: Polishing/Rough Grinding
Usage: For Mould, Stamping Work, Cemented Carbide Dies,
High Light:

MD45A Tungsten Carbide Rings

,

Tungsten Carbide Rings D201*D155.5


Product Description

Carbide Rings Grade MD45A Specification D201*d155.5*25.5



High performance cemented carbides for molding;Standard Specification For Square Material and Standard Specifications Of The Rings. Also we can produce the your drawing of ring.

  • 100% raw material;
  • Hip sintered, high hardness, high wear resistance;
  • Tunable residual stress
  • Electrochemical corrosion resistance

Polarization curve (corrosion current reduced, corrosion rate decreased significantly, corrosion resistance improved significantly)

Grade Co% WC Grain size Hardness Density Flexural Strength Fracture Toughness Elastic Modulus Coefficient of Thermal Expansion
    HRA HV30 g/cm3 MPa N/mm2 GPa 10-6/℃
ST37NF 15 Nano 92.0 1700 13.8 4800 10 430 6.3
ST37UF 15 Ultra-fine 91.5 1630 13.8 4200 11 430 6.3
MD15 12 Ultra-fine 92.2 1730 14.1 5100 10 470 5.7
MD10 10 Sub-Micron 91.7 1660 14.4 4300 11 490 5.4
MD33A 12 Sub-Micron 90.3 1470 14.2 4000 14 470 5.7
MD20 13 Sub-Micron 90.6 1500 14.2 4100 15 460 5.8
MD36 15 Sub-Micron 89.4 1360 13.8 3900 16 430 6.3
MD16 6 Fine 90.5 1500 14.8 3200 12 530 4.9
MD40B 12 Fine 89.5 1380 14.2 3800 17 470 5.7
MD40C 12 Fine 89.7 1400 14.1 3800 16 470 5.7
MD55 20 Fine 86.4 1060 13.5 3100 - 390 6.8
MD40A 12 Medium 88.9 1310 14.2 3700 27 470 5.7
MD45A 15 Medium 87.9 1200 13.9 3600 - 430 6.3





D Max Tolerance
(Δ)
d Specifications
Max Tolerance
(Δ)
H Max Tolerance
(Δ)
201 +0.3~+2.8 155.5 0~-2.0 25.5 0~+0.5
