Diameter: | 2-42mm | Length: | 310/330mm |
---|---|---|---|
Co%: | 12% | HRV: | 92.4 |
Hardness HV30: | 1740 | Density: | 14.1 |
Material: | Tungsten Carbide | ||
High Light: | Cemented Carbide Rod End Milling Tools,Cemented Carbide Rod For End Milling,End Milling Cemented Carbide Rod |

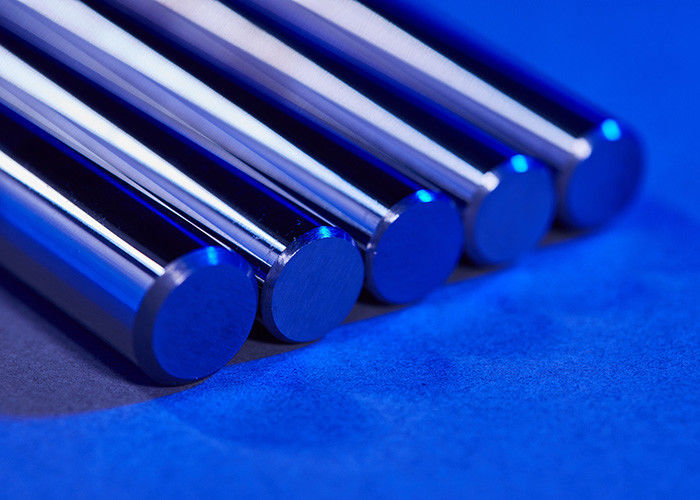

Material for end milling tools
Our rods have different grade and right to use on different application; Specially we are produce the Nano Grain carbide (Grain<0.2µm); Our rods are with high hardness and wear/corrosion resistance, all products with stable quality;
l Dimension: diameter from 2-42mm, length 310/330mm;
l Use for Finish milling
l Grind with h6/h5 tolerance
Grade Information
Grade | Co% | Grain Size of WC | Hardness |
Hardness |
Density | Flexural Strength | Fracture Toughness |
Elastic Mod- ulus | Coefficient of Thermal Expansion |
HRA | HV30 | g/cm³ | MPa | GPa | MNm-3/2 | 0-6/℃ | |||
ST25F | 9 | Ultra-fine | 92.4 | 1740 | 14.1 | 5100 | 10 | 470 | 5.7 |
Diameter | Length | ||||||||
D(mm) | Tolerance | L(mm) | Tolerance | ||||||
3.0 | +0.2~+0.4 | 40 | +0.5~+1.0 | ||||||
3.0 | +0.2~+0.4 | 50 | +0.5~+1.0 | ||||||
3.0 | +0.2~+0.4 | 75 | +0.5~+1.0 | ||||||
3.0 | +0.2~+0.4 | 100 | +0.5~+1.0 | ||||||
4.0 | +0.2~+0.4 | 50 | +0.5~+1.0 | ||||||
4.0 | +0.2~+0.4 | 60 | +0.5~+1.0 | ||||||
4.0 | +0.2~+0.4 | 75 | +0.5~+1.0 | ||||||
4.0 | +0.2~+0.4 | 100 | +0.5~+1.0 | ||||||
5.0 | +0.2~+0.4 | 50 | +0.5~+1.0 | ||||||
5.0 | +0.2~+0.4 | 60 | +0.5~+1.0 | ||||||
5.0 | +0.2~+0.4 | 75 | +0.5~+1.0 | ||||||
5.0 | +0.2~+0.4 | 100 | +0.5~+1.0 | ||||||
6.0 | +0.2~+0.4 | 50 | +0.5~+1.0 | ||||||
6.0 | +0.2~+0.4 | 60 | +0.5~+1.0 | ||||||
6.0 | +0.2~+0.4 | 75 | +0.5~+1.0 | ||||||
6.0 | +0.2~+0.4 | 80 | +0.5~+1.0 | ||||||
6.0 | +0.2~+0.4 | 100 | +0.5~+1.0 | ||||||
6.0 | +0.2~+0.4 | 150 | +0.5~+1.0 | ||||||
8.0 | +0.3~+0.55 | 60 | +0.5~+1.0 | ||||||
8.0 | +0.3~+0.55 | 75 | +0.5~+1.0 | ||||||
8.0 | +0.3~+0.55 | 80 | +0.5~+1.0 | ||||||
8.0 | +0.3~+0.55 | 100 | +0.5~+1.0 | ||||||
8.0 | +0.3~+0.55 | 150 | +0.5~+1.0 | ||||||
10.0 | +0.3~+0.55 | 75 | +0.5~+1.0 | ||||||
10.0 | +0.3~+0.55 | 100 | +0.5~+1.0 | ||||||
10.0 | +0.3~+0.55 | 150 | +0.5~+1.0 | ||||||
12.0 | +0.3~+0.55 | 75 | +0.5~+1.0 | ||||||
12.0 | +0.3~+0.55 | 100 | +0.5~+1.0 | ||||||
12.0 | +0.3~+0.55 | 150 | +0.5~+1.0 | ||||||
14.0 | +0.3~+0.65 | 100 | +0.5~+1.0 | ||||||
14.0 | +0.3~+0.65 | 150 | +0.5~+1.0 | ||||||
16.0 | +0.3~+0.65 | 92 | +0.5~+1.0 | ||||||
16.0 | +0.3~+0.65 | 100 | +0.5~+1.0 | ||||||
16.0 | +0.3~+0.65 | 150 | +0.5~+1.0 | ||||||
18.0 | +0.4~+0.8 | 100 | +0.5~+1.0 | ||||||
18.0 | +0.4~+0.8 | 150 | +0.5~+1.0 | ||||||
20.0 | +0.4~+0.8 | 100 | +0.5~+1.0 | ||||||
20.0 | +0.4~+0.8 | 150 | +0.5~+1.0 |
