| Brand Name: | PM |
|---|---|
| Minimum Order Quantity: | 1 |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T |
| Shaping Mode: | Punching Mold | Product Material: | Tungsten Carbide,100% Original Carbide |
|---|---|---|---|
| Grade: | MD40C,MD40A,MD45A,MD50A | Application: | Progressive Punching |
| Size: | Any Size | Type: | Any Type |
| Surface: | Polishing/sintering/blank,Polish/Grinding,Grinding | Usage: | Stamping Work |

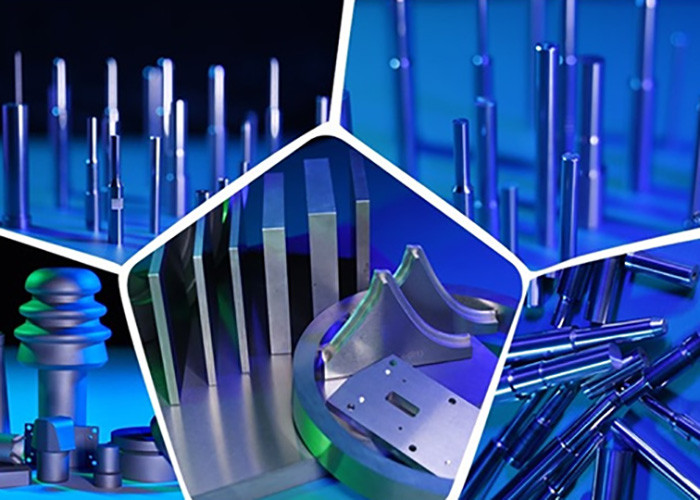

| High Light: | Custom Size Tungsten Carbide Mold,Stamping Die Punches Wear Resistant,Tungsten Carbide Mold Wear Resistant |
||
Carbide Progressive Mold Material 50*100
High performance cemented carbides for molding；Standard Specification For Square Material and Standard Specifications Of The Rings. Also we can produce the your drawing of ring.
Polarization curve (corrosion current reduced, corrosion rate decreased significantly, corrosion resistance improved significantly)
| Grade | Co% | WC Grain size | Hardness | Density | Flexural Strength | Fracture Toughness | Elastic Modulus | Coefficient of Thermal Expansion | |
| HRA | HV30 | g/cm3 | MPa | N/mm2 | GPa | 10-6/℃ | |||
| ST37NF | 15 | Nano | 92.0 | 1700 | 13.8 | 4800 | 10 | 430 | 6.3 |
| ST37UF | 15 | Ultra-fine | 91.5 | 1630 | 13.8 | 4200 | 11 | 430 | 6.3 |
| MD15 | 12 | Ultra-fine | 92.2 | 1730 | 14.1 | 5100 | 10 | 470 | 5.7 |
| MD10 | 10 | Sub-Micron | 91.7 | 1660 | 14.4 | 4300 | 11 | 490 | 5.4 |
| MD33A | 12 | Sub-Micron | 90.3 | 1470 | 14.2 | 4000 | 14 | 470 | 5.7 |
| MD20 | 13 | Sub-Micron | 90.6 | 1500 | 14.2 | 4100 | 15 | 460 | 5.8 |
| MD36 | 15 | Sub-Micron | 89.4 | 1360 | 13.8 | 3900 | 16 | 430 | 6.3 |
| MD16 | 6 | Fine | 90.5 | 1500 | 14.8 | 3200 | 12 | 530 | 4.9 |
| MD40B | 12 | Fine | 89.5 | 1380 | 14.2 | 3800 | 17 | 470 | 5.7 |
| MD40C | 12 | Fine | 89.7 | 1400 | 14.1 | 3800 | 16 | 470 | 5.7 |
| MD55 | 20 | Fine | 86.4 | 1060 | 13.5 | 3100 | - | 390 | 6.8 |
| MD40A | 12 | Medium | 88.9 | 1310 | 14.2 | 3700 | 27 | 470 | 5.7 |
| MD45A | 15 | Medium | 87.9 | 1200 | 13.9 | 3600 | - | 430 | 6.3 |
