| Brand Name: | PM |
|---|---|
| Minimum Order Quantity: | 1 |
| Price: | USD 65~80/KG |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C |
| Shaping Mode: | Die Casting,Extrusion Mould,Forging Mould,Punching Mold,Cold Stamping | Product Material: | Tungsten Carbide,100% Original Carbide |
|---|---|---|---|
| Product: | Vehicle Mould,mold Parts,Auto Stamping Parts | Material: | Tungsten Carbide |
| Product Name: | Carbide Plates | Grade: | MD40A |
| Application: | For Progressive Molds,Cold Rolling Plate,Upper Die,Lower Die | Size: | Any Size |
| Type: | Any Type | Advantage: | 1.Tunable Residual Stress,2.Electrochemical Corrosion Resistance |
| Surface Treatment: | Grinded | Usage: | For Mould,Stamping Work |
| Surface: | Polishing/sintering/blank, Polish/Grinding, Grinding | ||
| High Light: | Grinded Tungsten Carbide Block,Tungsten Carbide Block MD40A,Tungsten Carbide Plate MD40A |
||

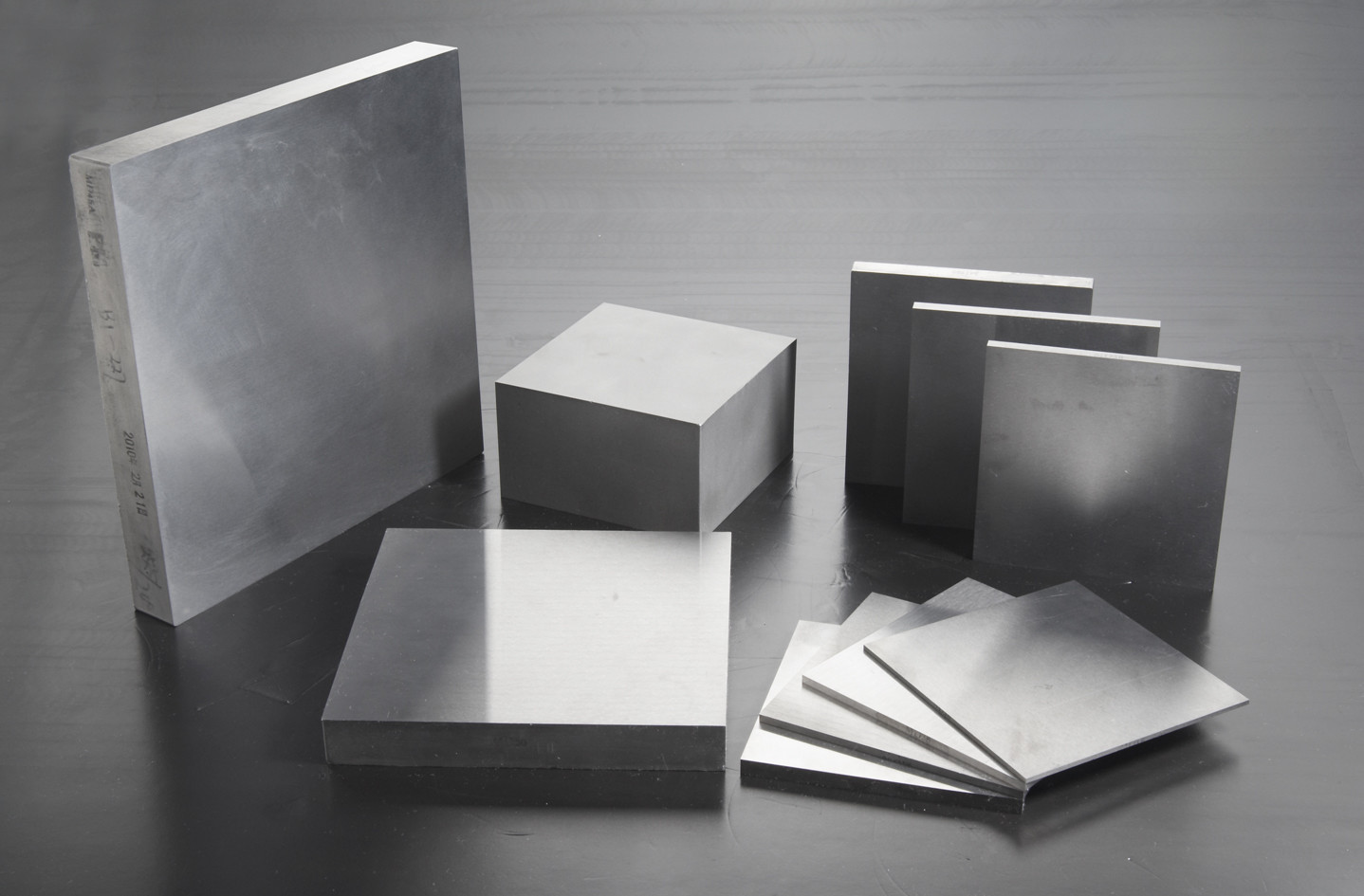

Tungsten Carbide Blocks MD40A
Technical features I: High performance cemented carbides for molding.Polarization curve (corrosion current reduced, corrosion rate decreased significantly, corrosion resistance improved significantly)
Technical features II: multi-layer cemented carbide,Produce variable mechanical properties to satisfied different working conditions.
Table for material properties of cemented carbide stamping mold:
| Grade | Co% | WC Grain size | Hardness | Density | Flexural Strength | Fracture Toughness | Elastic Modulus | Coefficient of Thermal Expansion | |
| HRA | HV30 | g/cm3 | MPa | N/mm2 | GPa | 10-6/℃ | |||
| MD37NF | 15 | Nano | 92.0 | 1700 | 13.8 | 4800 | 10 | 430 | 6.3 |
| MD37UF | 15 | Ultra-fine | 91.5 | 1630 | 13.8 | 4200 | 11 | 430 | 6.3 |
| MD15 | 12 | Ultra-fine | 92.2 | 1730 | 14.1 | 5100 | 10 | 470 | 5.7 |
| MD10 | 10 | Sub-Micron | 91.7 | 1660 | 14.4 | 4300 | 11 | 490 | 5.4 |
| MD33A | 12 | Sub-Micron | 90.3 | 1470 | 14.2 | 4000 | 14 | 470 | 5.7 |
| MD20 | 13 | Sub-Micron | 90.6 | 1500 | 14.2 | 4100 | 15 | 460 | 5.8 |
| MD36 | 15 | Sub-Micron | 89.4 | 1360 | 13.8 | 3900 | 16 | 430 | 6.3 |
| MD16 | 6 | Fine | 90.5 | 1500 | 14.8 | 3200 | 12 | 530 | 4.9 |
| MD40B | 12 | Fine | 89.5 | 1380 | 14.2 | 3800 | 17 | 470 | 5.7 |
| MD40C | 12 | Fine | 89.7 | 1400 | 14.1 | 3800 | 16 | 470 | 5.7 |
| MD55 | 20 | Fine | 86.4 | 1060 | 13.5 | 3100 | - | 390 | 6.8 |
| MD40A | 12 | Medium | 88.9 | 1310 | 14.2 | 3700 | 27 | 470 | 5.7 |
| MD45A | 15 | Medium | 87.9 | 1200 | 13.9 | 3600 | - | 430 | 6.3 |
