| Brand Name: | PM |
|---|---|
| Minimum Order Quantity: | 1 |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T |
| Product Material: | Tungsten Carbide,100% Original Carbide | Product: | Mold Parts |
|---|---|---|---|
| Grade: | MD40A | Application: | For Upper And Lower Dies,Stamping And Cutting |
| Type: | Any Type | Advantage: | Electrochemical Corrosion Resistance;Hip Sintered, High Hardness, High Wear Resistance;Tunable Residual Stress; |
| Surface Treatment: | Polishing | Usage: | For Mould, Stamping Work, Cemented Carbide Dies, |
| High Light: | High Accurate Tungsten Carbide Rod Pin,Tungsten Carbide Pin Tunable Residual Stress |
||

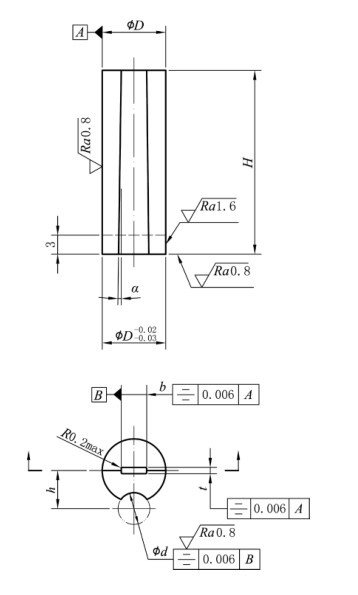

Counting Dies TYPE B
High performance cemented carbides for molding；Standard Specification For Square Material and Standard Specifications Of The Rings. Also we can produce the your drawing of ring.
| TYPE B | ||||||||||||
| t±0.002 | b±0.002 | D+0.002 0 | H±0.02 | h±0.002 | d+0.002 0 | |||||||
| 0.715 | 2.05 | 8 | 25,27,29,32 | 5 | 4 | |||||||
| 0.815 | 2.05 | 8 | 25,27,29,32 | 5 | 4 | |||||||
| 0.855 | 3.05 | 8 | 25,27,29,32 | 5 | 4 | |||||||
| 1.055 | 3.05 | 8 | 25,27,29,32 | 5 | 5 | |||||||
| 1.255 | 3.05 | 8 | 25,27,29,32 | 5 | 5 | |||||||
| 1.555 | 3.05 | 8 | 25,27,29,32 | 5 | 5 | |||||||
| 1.065 | 4.06 | 10 | 25,27,29,32 | 6 | 6 | |||||||
| 1.265 | 4.06 | 10 | 25,27,29,32 | 6 | 6 | |||||||
| 1.565 | 4.06 | 10 | 25,27,29,32 | 6 | 6 | |||||||
| 1.065 | 5.06 | 12 | 25,27,29,32 | 7 | 6 | |||||||
| 12 | 5.06 | 12 | 25,27,29,32 | 7 | 6 | |||||||
| 1.265 | 5.06 | 12 | 25,27,29,32 | 7 | 6 | |||||||
| 1.565 | 5.06 | 12 | 25,27,29,32 | 7 | 6 | |||||||
| Grade | Co% | WC Grain size | Hardness | Density | Flexural Strength | Fracture Toughness | Elastic Modulus | Coefficient of Thermal Expansion | |
| HRA | HV30 | g/cm3 | MPa | N/mm2 | GPa | 10-6/℃ | |||
| MD40B | 12 | Fine | 89.5 | 1380 | 14.2 | 3800 | 17 | 470 | 5.7 |
| MD40C | 12 | Fine | 89.7 | 1400 | 14.1 | 3800 | 16 | 470 | 5.7 |
| MD40A | 12 | Medium | 88.9 | 1310 | 14.2 | 3700 | 27 | 470 | 5.7 |
| MD45A | 15 | Medium | 87.9 | 1200 | 13.9 | 3600 | - | 430 | 6.3 |
