| Brand Name: | PM |
|---|---|
| Minimum Order Quantity: | 10 |
| Delivery Time: | 1-25 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000pcs/month |
| Diameter: | 2-42mm | Length: | 310/330mm |
|---|---|---|---|
| Co%: | 9 | HRV: | 92.4 |
| Hardness HV30: | 1740 | Density: | 14.1 |
| Material: | Tungsten Carbide | ||
| High Light: | Tungsten Carbide Blanks 310mm,Tungsten Carbide Blanks 330mm,Tungsten Carbide Blanks ISO9001 |
||

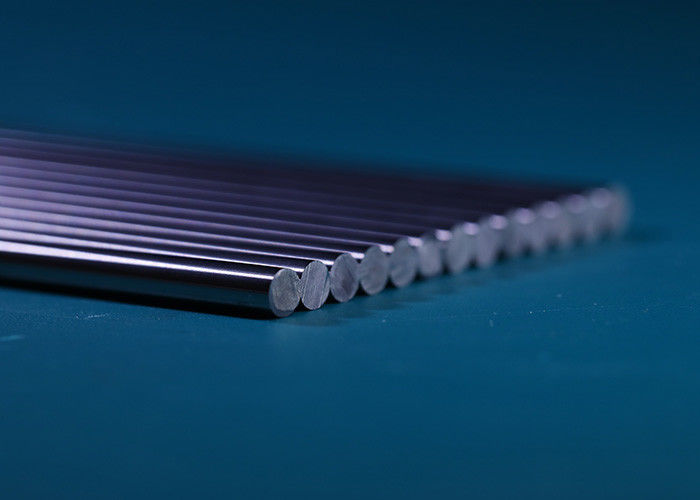

Tungsten Carbide Grind 310/330mm Length Rods for end-milling tools
Our rods have different grade and right to use on different application; Specially we are produce the Nano Grain carbide (Grain＜0.2µm); Our rods are with high hardness and wear/corrosion resistance, all products with stable quality;
l Dimension: diameter from 2-42mm, length 310/330mm;
l Use for Finish milling
l Grind with h6/h5 tolerance
Grade Information
| Grade | Co% | Grain Size of WC | Hardness |
Hardness |
Density | Flexural Strength | Fracture Toughness |
Elastic Mod- ulus | Coefficient of Thermal Expansion |
| HRA | HV30 | g/cm³ | MPa | GPa | MNm-3/2 | 0-6/℃ | |||
| ST25F | 9 | Ultra-fine | 92.4 | 1740 | 14.1 | 5100 | 10 | 470 | 5.7 |
