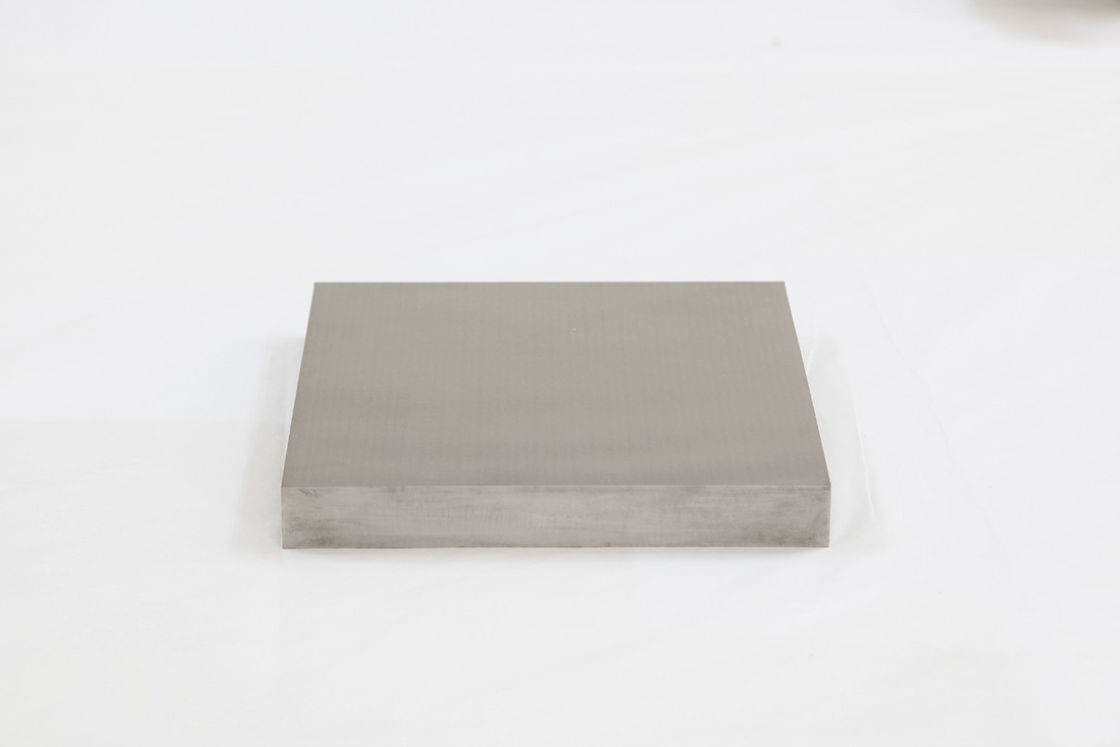

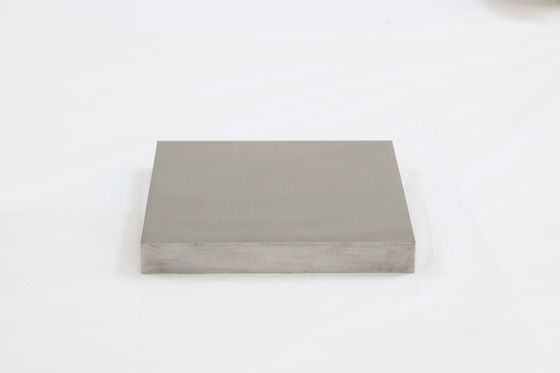

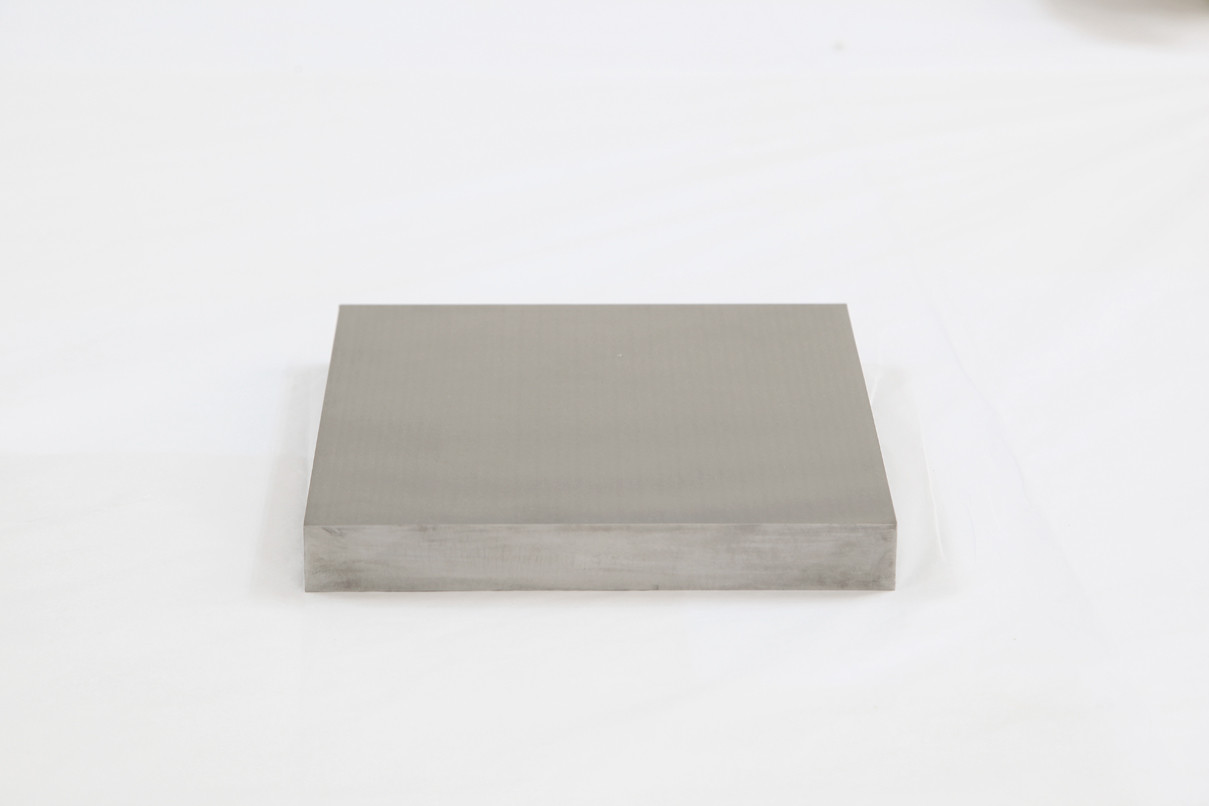

MD33A Tungsten Carbide Plates Wood Processing Cutting Tool

Basic Information
Brand Name: PM
Minimum Order Quantity: 1
Price: USD 65~80/KG
Delivery Time: 10 working days
Payment Terms: T/T, L/C
Detail Information
Shaping Mode: Die Casting,Extrusion Mould,Forging Mould,Punching Mold,Cold Stamping Product Material: Tungsten Carbide,100% Original Carbide
Product: Vehicle Mould,mold Parts,Auto Stamping Parts Material: Tungsten Carbide
Product Name: Carbide Plates Grade: MD33A
Application: For Progressive Molds,Cold Rolling Plate,Upper Die,Lower Die Size: Any Size
Type: Any Type Advantage: 1.Tunable Residual Stress,2.Electrochemical Corrosion Resistance
Surface Treatment: Grinded Usage: For Mould,Stamping Work
Surface: Polishing/sintering/blank, Polish/Grinding, Grinding
High Light:

MD33A Tungsten Carbide Plates

,

Tungsten Carbide Plates Wood Processing

,

MD33A Tungsten Carbide Tool


Product Description

Tungsten Carbide Plates MD33A



Technical features I: High performance cemented carbides for molding.Polarization curve (corrosion current reduced, corrosion rate decreased significantly, corrosion resistance improved significantly)



Technical features II: multi-layer cemented carbide,Produce variable mechanical properties to satisfied different working conditions.



Table for material properties of cemented carbide stamping mold:

Grade Co% WC Grain size Hardness Density Flexural Strength Fracture Toughness Elastic Modulus Coefficient of Thermal Expansion
    HRA HV30 g/cm3 MPa N/mm2 GPa 10-6/℃
MD37NF 15 Nano 92.0 1700 13.8 4800 10 430 6.3
MD37UF 15 Ultra-fine 91.5 1630 13.8 4200 11 430 6.3
MD15 12 Ultra-fine 92.2 1730 14.1 5100 10 470 5.7
MD10 10 Sub-Micron 91.7 1660 14.4 4300 11 490 5.4
MD33A 12 Sub-Micron 90.3 1470 14.2 4000 14 470 5.7
MD20 13 Sub-Micron 90.6 1500 14.2 4100 15 460 5.8
MD36 15 Sub-Micron 89.4 1360 13.8 3900 16 430 6.3
MD16 6 Fine 90.5 1500 14.8 3200 12 530 4.9
MD40B 12 Fine 89.5 1380 14.2 3800 17 470 5.7
MD40C 12 Fine 89.7 1400 14.1 3800 16 470 5.7
MD55 20 Fine 86.4 1060 13.5 3100 - 390 6.8
MD40A 12 Medium 88.9 1310 14.2 3700 27 470 5.7
MD45A 15 Medium 87.9 1200 13.9 3600 - 430 6.3
