| Brand Name: | PM |
|---|---|
| Minimum Order Quantity: | 1 |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T |
| Shaping Mode: | Punching Mold | Product Material: | Tungsten Carbide,100% Original Carbide |
|---|---|---|---|
| Grade: | MD45A | Application: | Progressive Punching |
| Size: | Any Size | Type: | Any Type |
| Surface: | Polishing/sintering/blank,Polish/Grinding,Grinding | Usage: | Stamping Work |
| High Light: | Md45a Tungsten Carbide Mold,Md45a Carbide Mold,Carbide Pre Formed Parts |
||

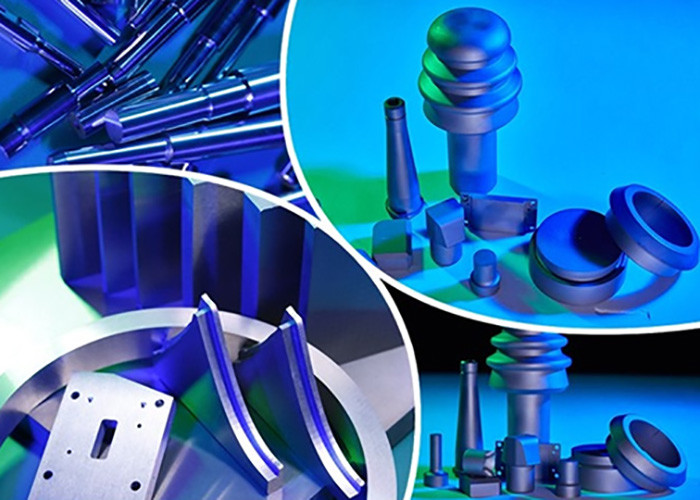

Tungsten Carbide PRE-FORMED PARTS Grade MD45A
High performance cemented carbides for molding；Standard Specification For Square Material and Standard Specifications Of The Rings. Also we can produce the your drawing of ring.
Polarization curve (corrosion current reduced, corrosion rate decreased significantly, corrosion resistance improved significantly)
| Grade | Co% | WC Grain size | Hardness | Density | Flexural Strength | Fracture Toughness | Elastic Modulus | Coefficient of Thermal Expansion | |
| HRA | HV30 | g/cm3 | MPa | N/mm2 | GPa | 10-6/℃ | |||
| ST37NF | 15 | Nano | 92.0 | 1700 | 13.8 | 4800 | 10 | 430 | 6.3 |
| ST37UF | 15 | Ultra-fine | 91.5 | 1630 | 13.8 | 4200 | 11 | 430 | 6.3 |
| MD15 | 12 | Ultra-fine | 92.2 | 1730 | 14.1 | 5100 | 10 | 470 | 5.7 |
| MD10 | 10 | Sub-Micron | 91.7 | 1660 | 14.4 | 4300 | 11 | 490 | 5.4 |
| MD33A | 12 | Sub-Micron | 90.3 | 1470 | 14.2 | 4000 | 14 | 470 | 5.7 |
| MD20 | 13 | Sub-Micron | 90.6 | 1500 | 14.2 | 4100 | 15 | 460 | 5.8 |
| MD36 | 15 | Sub-Micron | 89.4 | 1360 | 13.8 | 3900 | 16 | 430 | 6.3 |
| MD16 | 6 | Fine | 90.5 | 1500 | 14.8 | 3200 | 12 | 530 | 4.9 |
| MD40B | 12 | Fine | 89.5 | 1380 | 14.2 | 3800 | 17 | 470 | 5.7 |
| MD40C | 12 | Fine | 89.7 | 1400 | 14.1 | 3800 | 16 | 470 | 5.7 |
| MD55 | 20 | Fine | 86.4 | 1060 | 13.5 | 3100 | - | 390 | 6.8 |
| MD40A | 12 | Medium | 88.9 | 1310 | 14.2 | 3700 | 27 | 470 | 5.7 |
| MD45A | 15 | Medium | 87.9 | 1200 | 13.9 | 3600 | - | 430 | 6.3 |
