PM Small Hole Carbide Punch Pin , High Precision Mold Spare Parts

Basic Information
Brand Name: PM
Minimum Order Quantity: 1
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Detail Information
Product Material: Tungsten Carbide,100% Original Carbide Product: Mold Parts
Grade: MD40A Application: For Upper And Lower Dies,Stamping And Cutting
Type: Any Type Advantage: Electrochemical Corrosion Resistance;Hip Sintered, High Hardness, High Wear Resistance;Tunable Residual Stress;
Surface Treatment: Polishing/Rough Grinding Usage: For Mould, Stamping Work, Cemented Carbide Dies,
High Light:

Small Hole Carbide Punch Pin

,

High Precision Mold Spare Parts

,

Carbide Mold Spare Parts


Product Description

Carbide Rings Grade MD40A for Punch (Stacking Punchs Type A)



High performance cemented carbides for molding;Standard Specification For Square Material and Standard Specifications Of The Rings. Also we can produce the your drawing of ring.

  • 100% raw material;
  • Hip sintered, high hardness, high wear resistance;
  • Tunable residual stress
  • Electrochemical corrosion resistance

Polarization curve (corrosion current reduced, corrosion rate decreased significantly, corrosion resistance improved significantly)

Grade Co% WC Grain size Hardness Density Flexural Strength Fracture Toughness Elastic Modulus Coefficient of Thermal Expansion
    HRA HV30 g/cm3 MPa N/mm2 GPa 10-6/℃

MD40B 12 Fine 89.5 1380 14.2 3800 17 470 5.7
MD40C 12 Fine 89.7 1400 14.1 3800 16 470 5.7

MD40A 12 Medium 88.9 1310 14.2 3700 27 470 5.7
MD45A 15 Medium 87.9 1200 13.9 3600 - 430 6.3

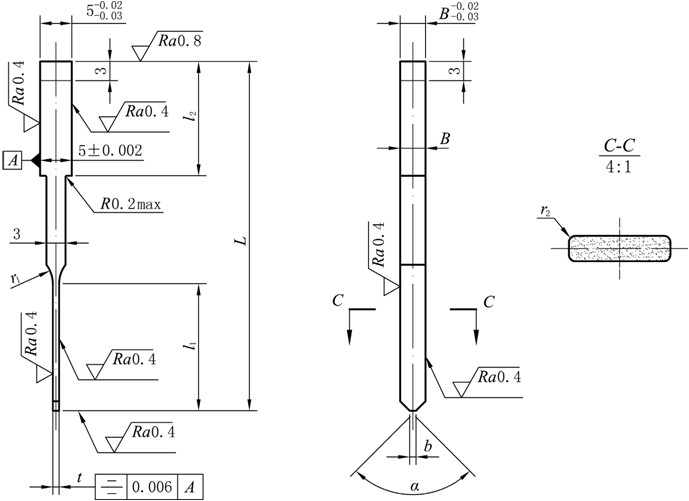

TYPE A
t±0.002 B±0.002 L+0.5 +0.3 l1 l2 ±0.02
1.0 3 55 18 18,20
1.2 3 55,60 18,20 18,20
1.5 3 60 20 20
1.0 4 55 18 18,20
1.2 4 55,60 18,20 18,20
1.5 4 60 20 20
1.0 5 55 18 18,20
1.2 5 55,60 18,20 18,20
1.5 5 60 20 20
