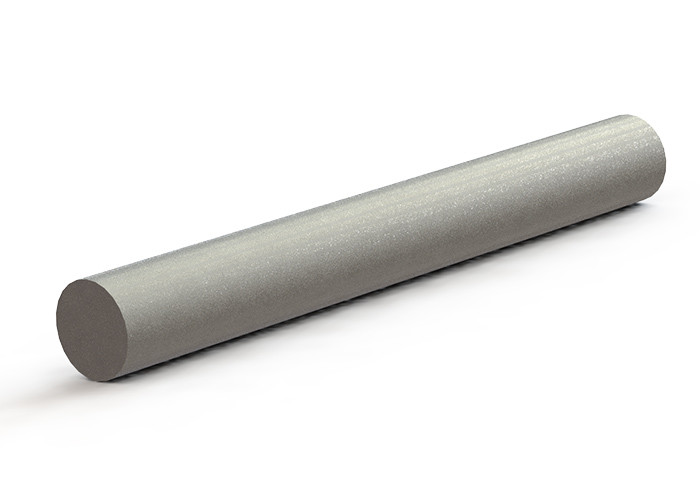

Ungrind Tungsten Carbide Rod Fixed Length For End Milling Tools

Basic Information
Brand Name: PM
Minimum Order Quantity: 10
Delivery Time: 1-25 work days
Payment Terms: T/T
Supply Ability: 1000000pcs/month
Detail Information
Diameter: 2-42mm Length: 310/330mm
Co%: 12% HRV: 92.4
Hardness HV30: 1740 Density: 14.1
Material: Tungsten Carbide
High Light:

Ungrind Carbide Rod

,

Ungrind Tungsten Carbide Rod

,

Tungsten Carbide Rod Fixed Length


Product Description

Tungsten Carbide Ungrind Fixed Length Bars for end-milling tools



Our rods have different grade and right to use on different application; Specially we are produce the Nano Grain carbide (Grain<0.2µm); Our rods are with high hardness and wear/corrosion resistance, all products with stable quality;

  • 100% raw material;
  • Hip sintered, high hardness, high wear resistance;

l Dimension: diameter from 2-42mm, length 310/330mm;

l Use for Finish milling

l Grind with h6/h5 tolerance




Grade Information

Grade Co% Grain Size of WC Hardness



Hardness


 Density Flexural Strength Fracture
Toughness
Elastic Mod- ulus Coefficient
of Thermal
Expansion
      HRA HV30  g/cm³ MPa GPa MNm-3/2 0-6/℃

ST25F 9 Ultra-fine 92.4 1740 14.1 5100 10 470 5.7



Diameter   Length
D(mm) Tolerance L(mm) Tolerance
3.0 +0.2~+0.4 40 +0.5~+1.0
3.0 +0.2~+0.4 50 +0.5~+1.0
3.0 +0.2~+0.4 75 +0.5~+1.0
3.0 +0.2~+0.4 100 +0.5~+1.0
4.0 +0.2~+0.4 50 +0.5~+1.0
4.0 +0.2~+0.4 60 +0.5~+1.0
4.0 +0.2~+0.4 75 +0.5~+1.0
4.0 +0.2~+0.4 100 +0.5~+1.0
5.0 +0.2~+0.4 50 +0.5~+1.0
5.0 +0.2~+0.4 60 +0.5~+1.0
5.0 +0.2~+0.4 75 +0.5~+1.0
5.0 +0.2~+0.4 100 +0.5~+1.0
6.0 +0.2~+0.4 50 +0.5~+1.0
6.0 +0.2~+0.4 60 +0.5~+1.0
6.0 +0.2~+0.4 75 +0.5~+1.0
6.0 +0.2~+0.4 80 +0.5~+1.0
6.0 +0.2~+0.4 100 +0.5~+1.0
6.0 +0.2~+0.4 150 +0.5~+1.0
8.0 +0.3~+0.55 60 +0.5~+1.0
8.0 +0.3~+0.55 75 +0.5~+1.0
8.0 +0.3~+0.55 80 +0.5~+1.0
8.0 +0.3~+0.55 100 +0.5~+1.0
8.0 +0.3~+0.55 150 +0.5~+1.0
10.0 +0.3~+0.55 75 +0.5~+1.0
10.0 +0.3~+0.55 100 +0.5~+1.0
10.0 +0.3~+0.55 150 +0.5~+1.0
12.0 +0.3~+0.55 75 +0.5~+1.0
12.0 +0.3~+0.55 100 +0.5~+1.0
12.0 +0.3~+0.55 150 +0.5~+1.0
14.0 +0.3~+0.65 100 +0.5~+1.0
14.0 +0.3~+0.65 150 +0.5~+1.0
16.0 +0.3~+0.65 92 +0.5~+1.0
16.0 +0.3~+0.65 100 +0.5~+1.0
16.0 +0.3~+0.65 150 +0.5~+1.0
18.0 +0.4~+0.8 100 +0.5~+1.0
18.0 +0.4~+0.8 150 +0.5~+1.0
20.0 +0.4~+0.8 100 +0.5~+1.0
20.0 +0.4~+0.8 150 +0.5~+1.0
