Detail Information

Diameter:	2-48mm	Length:	40-330mm
Co%:	6-15%	HRV:	91.0-94.5
Hardness HV30:	1520-2180	Density:	13.8-14.8g/cm³
Flexural Strength:	9-13MPa	Fracture Toughness:	430-530GPa
Elastic Mod- Ulus:	4.9-6.3 MNm-3/2
High Light:	100% Tungsten Carbide Rod , 9MPa Tungsten Carbide Rod , 48mm Tungsten Carbide Rod

Product Description

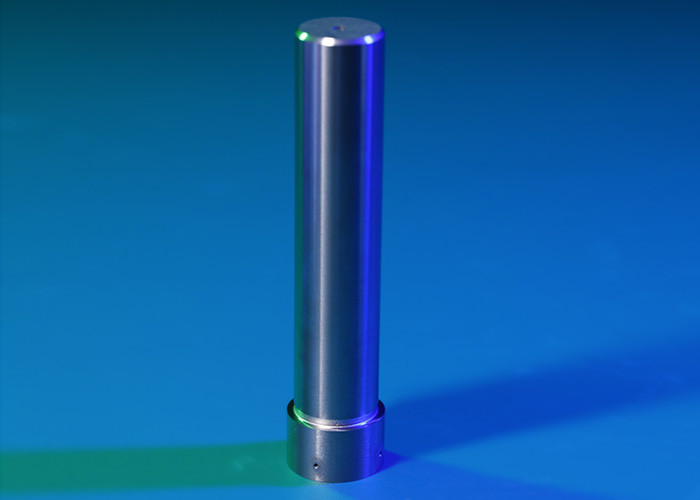

Tungsten Carbide Blank Solid Rods for milling tools

Our rods have different grade and right to use on different application; Specially we are produce the Nano Grain carbide (Grain＜0.2µm); Our rods are with high hardness and wear/corrosion resistance, all products with stable quality;

100% raw material;
Hip sintered, high hardness, high wear resistance;

l Dimension: diameter from 2-48mm, length up to 330mm;

l with one coolant hole or helix holes rods and blind hole rod;

l Ground(tolerance with h6/h5/h4) and unground;

Grade Information

Grade	Co%	Grain Size of WC	HRA	Hardness HV₃₀	Density	Flexural Strength	Fracture Toughness	Elastic Mod- ulus	Coefficient of Thermal Expansion
					g/cm³	MPa	GPa	_MNm-3/2	10-6/℃
ST10F	6	Sub-Micron	92.9	1840	14.8	3500	10	530	4.9
ST10UF	6	Ultra-fine	93.8	2040	14.7	2900	9	530	4.9
ST10NF	6	Nano	94.5	2180	14.6	4000	9	530	4.9
ST10C	7	Fine	90.7	1480	14.7	3500	12	520	5.0
ST11F	8	Sub-Micron	92.3	1720	14.6	3800	10	510	5.1
ST11UF	8	Ultra-fine	93.5	1960	14.5	3200	9	510	5.1
ST12F	9	Ultra-fine	93.5	1960	14.4	4500	10	500	5.3
ST12NF	9	Nano	94.2	2100	14.3	4800	9	500	5.3
ST15D	9	Sub-Micron	91.2	1520	14.4	3500	13	500	5.3
ST15F	10	Sub-Micron	92.0	1670	14.3	3600	11	490	5.4
ST20F	10	Sub-Micron	91.7	1620	14.4	4300	11	490	5.4
ST20D	10	Sub-Micron	92.0	1670	14.3	4100	11	490	5.4
ST25F	12	Ultra-fine	92.4	1740	14.1	5100	10	470	5.7
ST25EF	12	Ultra-fine	92.2	1700	14.1	4800	10	470	5.7
ST25D	12	Ultra-fine	91.5	1570	14.2	3900	13	470	5.7
ST37NF	15	Nano	92.2	1700	13.8	4600	12	430	6.3
