| Brand Name: | PM |
|---|---|
| Minimum Order Quantity: | 10 |
| Delivery Time: | 1-25 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000pcs/month |
| Diameter: | 2-42mm | Length: | Fixed Length |
|---|---|---|---|
| Co%: | 12% | HRA: | 92.4 |
| Hardness HV30: | 1740 | Density: | 14.1 |
| Material: | Tungsten Carbide | ||
| High Light: | 100% Carbide Rod Blanks,92.4HRA Carbide Drill Rod,Carbide Rod Blanks 92.4HRA |
||

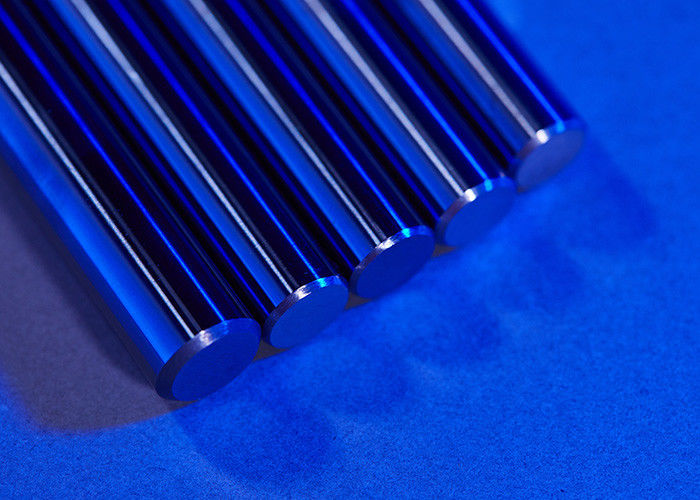

Tungsten Carbide Grind Fixed Length Rods for end-milling tools
Our rods have different grade and right to use on different application; Specially we are produce the Nano Grain carbide (Grain＜0.2µm); Our rods are with high hardness and wear/corrosion resistance, all products with stable quality;
l Dimension: diameter from 3-42mm, length 310/330mm;
l Use for Finish milling
l Grind with h5/h4 tolerance
Grade Information
| Grade | Co% | Grain Size of WC | Hardness |
Hardness |
Density | Flexural Strength | Fracture Toughness |
Elastic Mod- ulus | Coefficient of Thermal Expansion |
| HRA | HV30 | g/cm³ | MPa | GPa | MNm-3/2 | 0-6/℃ | |||
| ST25F | 12 | Ultra-fine | 92.4 | 1740 | 14.1 | 5100 | 10 | 470 | 5.7 |
| Diameter | Length | |||||||
| D(mm) | Tolerance | L(mm) | ||||||
| 3.0 | h5/h4 | 40 | ||||||
| 3.0 | h5/h4 | 50 | ||||||
| 3.0 | h5/h4 | 52 | ||||||
| 3.0 | h5/h4 | 75 | ||||||
| 3.0 | h5/h4 | 100 | ||||||
| 4.0 | h5/h4 | 50 | ||||||
| 4.0 | h5/h4 | 60 | ||||||
| 4.0 | h5/h4 | 75 | ||||||
| 4.0 | h5/h4 | 100 | ||||||
| 5.0 | h5/h4 | 50 | ||||||
| 5.0 | h5/h4 | 51 | ||||||
| 5.0 | h5/h4 | 60 | ||||||
| 5.0 | h5/h4 | 75 | ||||||
| 5.0 | h5/h4 | 100 | ||||||
| 6.0 | h5/h4 | 50 | ||||||
| 6.0 | h5/h4 | 51 | ||||||
| 6.0 | h5/h4 | 55 | ||||||
| 6.0 | h5/h4 | 60 | ||||||
| 6.0 | h5/h4 | 63 | ||||||
| 6.0 | h5/h4 | 75 | ||||||
| 6.0 | h5/h4 | 80 | ||||||
| 6.0 | h5/h4 | 100 | ||||||
| 6.0 | h5/h4 | 150 | ||||||
| 8.0 | h5/h4 | 60 | ||||||
| 8.0 | h5/h4 | 64 | ||||||
| 8.0 | h5/h4 | 75 | ||||||
| 8.0 | h5/h4 | 80 | ||||||
| 8.0 | h5/h4 | 100 | ||||||
| 8.0 | h5/h4 | 150 | ||||||
| 10.0 | h5/h4 | 67 | ||||||
| 10.0 | h5/h4 | 73 | ||||||
| 10.0 | h5/h4 | 75 | ||||||
| 10.0 | h5/h4 | 100 | ||||||
| 10.0 | h5/h4 | 150 | ||||||
| 12.0 | h5/h4 | 74 | ||||||
| 12.0 | h5/h4 | 75 | ||||||
| 12.0 | h5/h4 | 84 | ||||||
| 12.0 | h5/h4 | 100 | ||||||
| 12.0 | h5/h4 | 150 | ||||||
| 14.0 | h5/h4 | 84 | ||||||
| 14.0 | h5/h4 | 100 | ||||||
| 14.0 | h5/h4 | 101 | ||||||
| 14.0 | h5/h4 | 150 | ||||||
| 16.0 | h5/h4 | 83 | ||||||
| 16.0 | h5/h4 | 92.3 | ||||||
| 16.0 | h5/h4 | 100 | ||||||
| 16.0 | h5/h4 | 150 | ||||||
| 16.0 | h5/h4 | 93.3 | ||||||
| 18.0 | h5/h4 | 100 | ||||||
| 18.0 | h5/h4 | 150 | ||||||
| 20.0 | h5/h4 | 93.3 | ||||||
| 20.0 | h5/h4 | 100 | ||||||
| 20.0 | h5/h4 | 105.3 | ||||||
| 20.0 | h5/h4 | 150 | ||||||
